Built for long-term accuracy

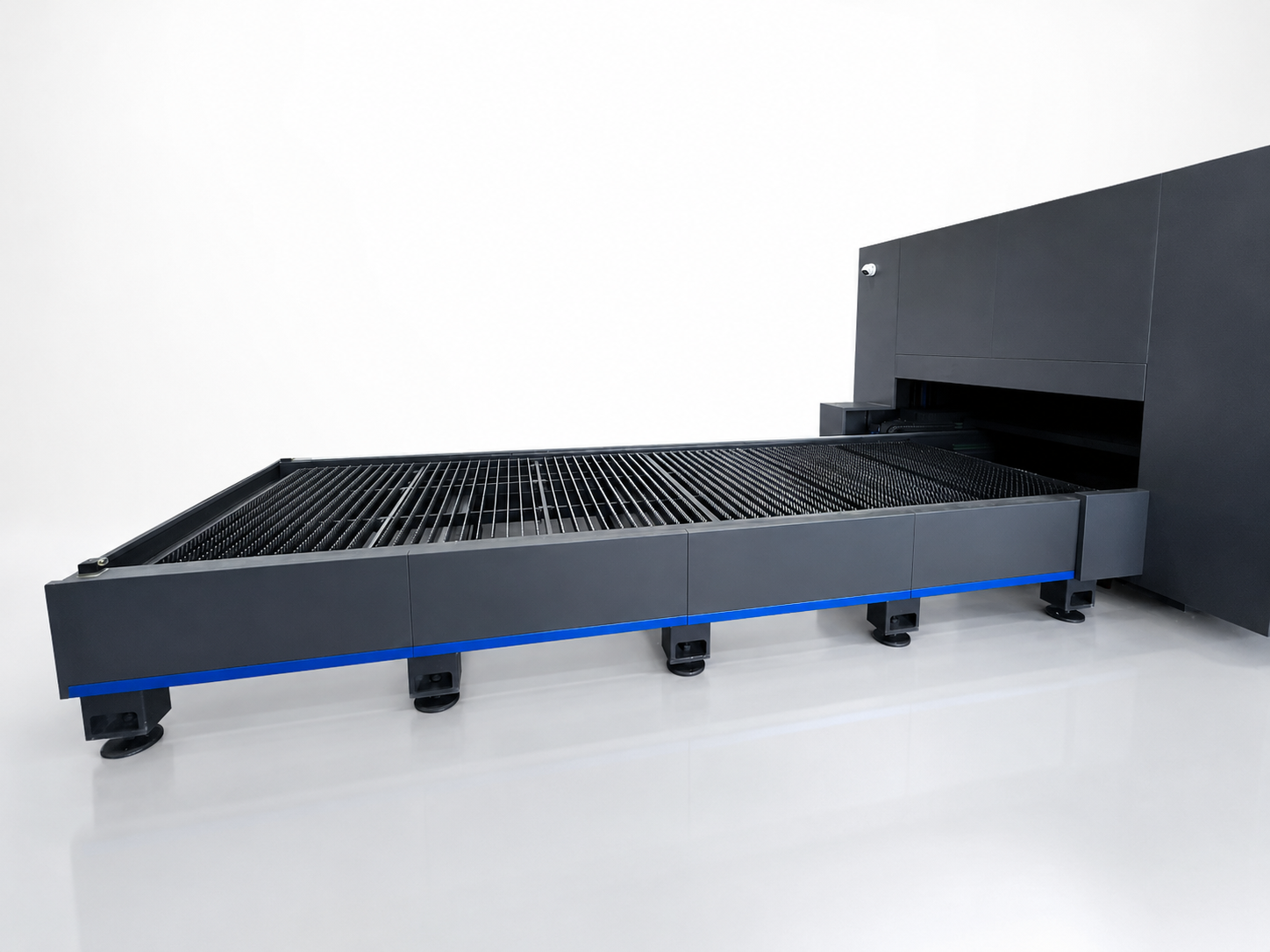

The machine bed is annealed and vibration-aged to reduce internal stress and resist deformation.
Request a quote Industrial fiber laser cutting

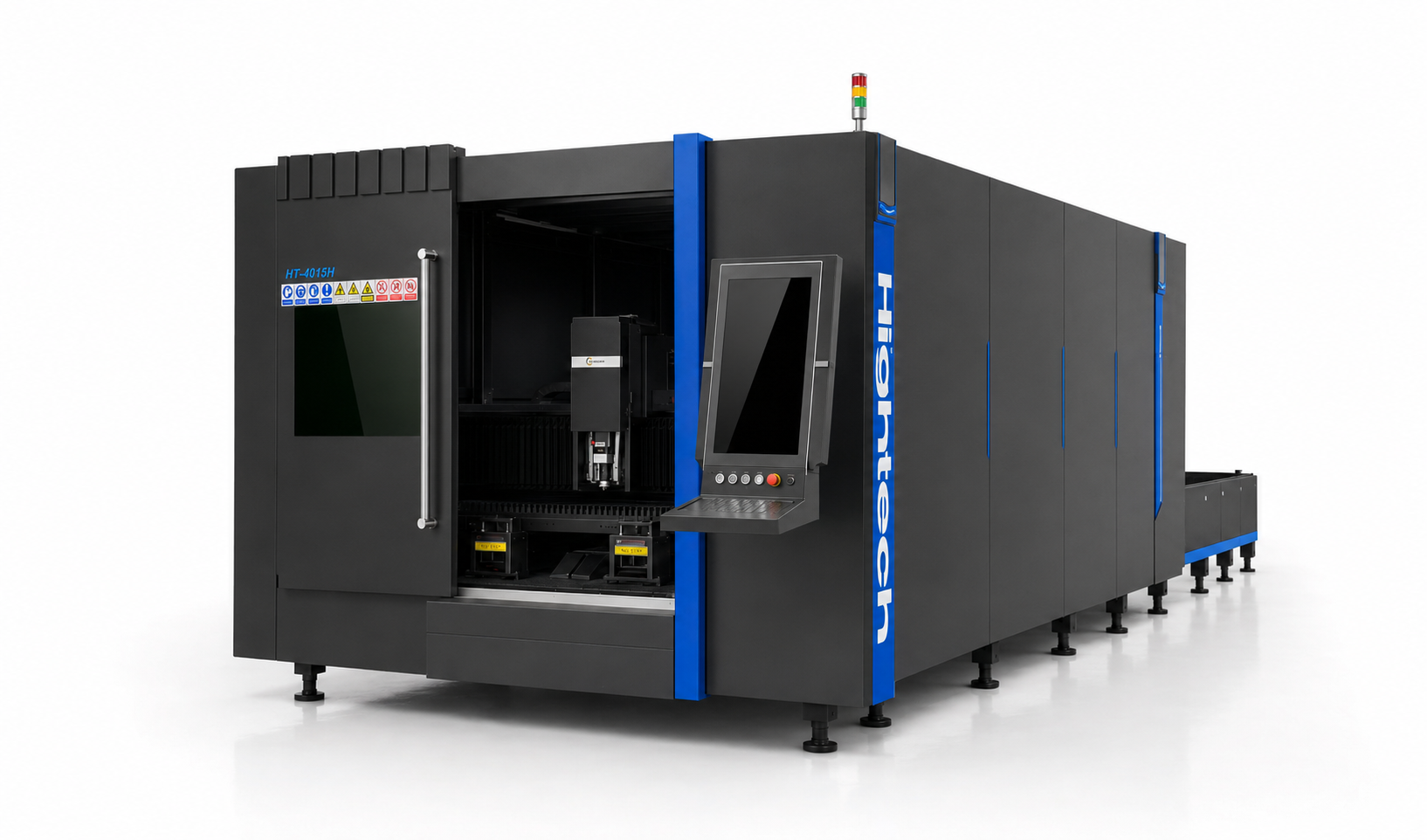

HT-4015H
6 kW Fiber Laser Cutting Machine
High-speed, large-format sheet metal cutting with a fully enclosed body, automatic exchange table and production-grade motion control.
4000 × 1500 mmWorking area
Raycus 6000 WLaser power
120 m/minMaximum speed
1.5 GAcceleration
H SERIES 4015
17+Years in business
1,800+Satisfied customers
112+Export countries
38+Global agents
Engineered for production
Precision at industrial scale.
The HT-4015H combines a stress-relieved honeycomb carbon steel bed, lightweight high-strength gantry and intelligent BOCHU control for stable, repeatable cutting across demanding production schedules.
Fast, stable motion

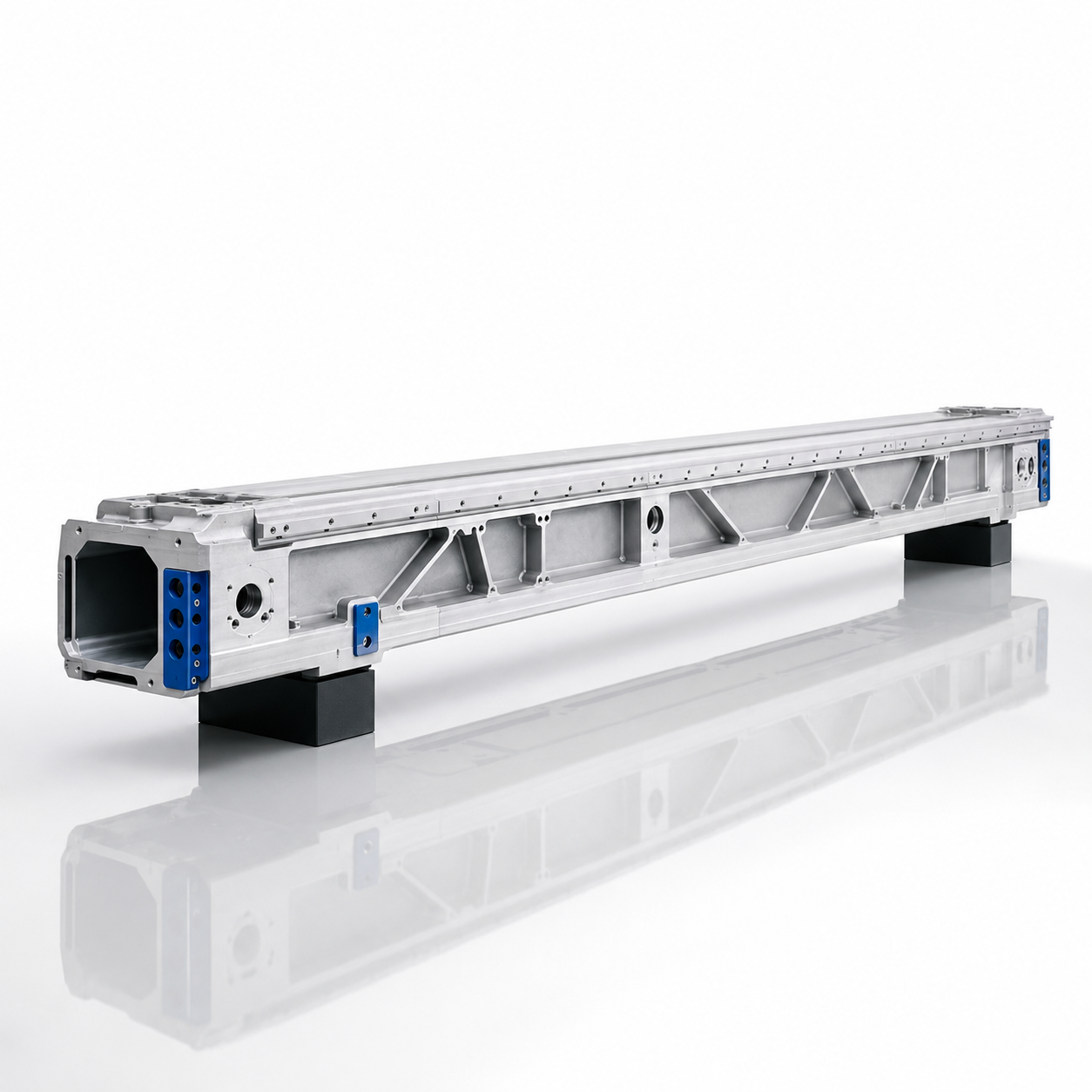

A high-strength aviation aluminum gantry pairs low moving mass with the rigidity required for 1.5 G acceleration.
Smarter cutting control
High-power EtherCAT control with intelligent piercing, edge finding and coordinated motion, laser and gas control.
Core machine systems
Recognized components.
Integrated for production.
Component specifications are based on the supplied machine catalogue and official manufacturer data. Final brands and models should be confirmed on the sales quotation.

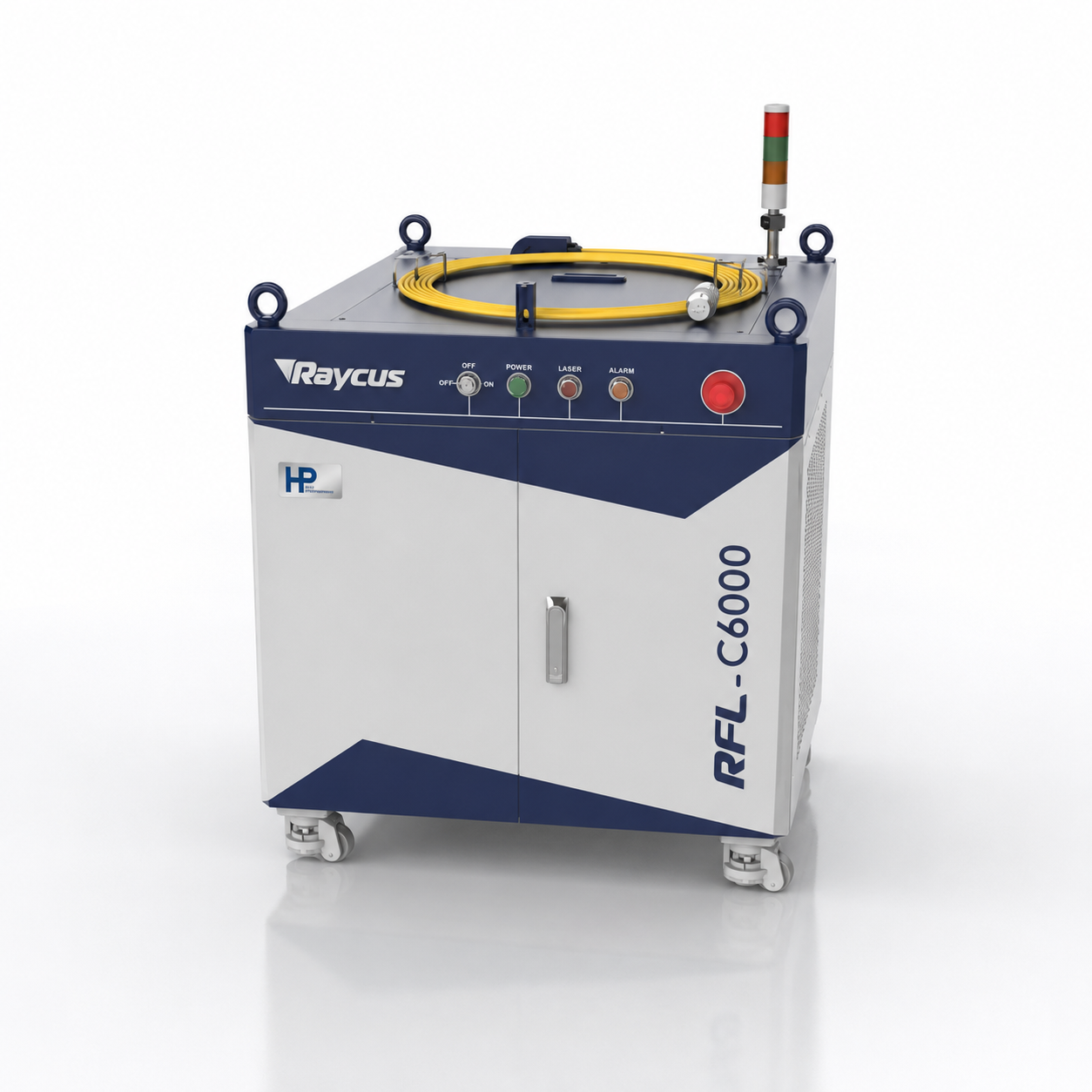

6 kW multi-module fiber source
Raycus RFL-C6000M-HP
Raycus’ high-power multi-module CW fiber source combines intelligent monitoring, multiple anti-reflection mechanisms and industrial bus-control options.
- 6000 W average output
- 1080 ± 5 nm wavelength
- Up to 5 kHz modulation
- Water cooled

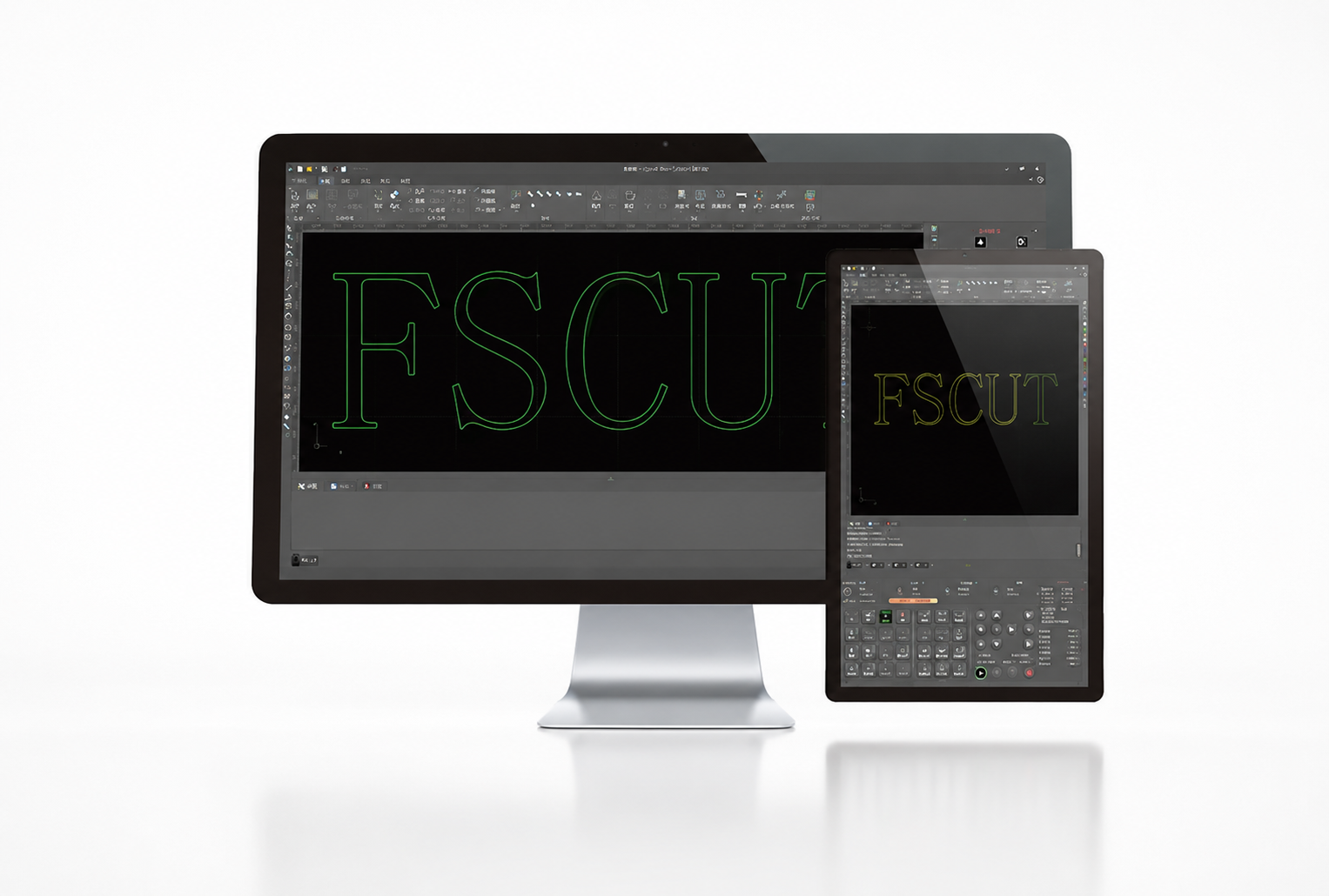

High-power EtherCAT control
CypCutE / FSCUT6000 Advanced
BOCHU’s high-power EtherCAT controller coordinates machine motion, laser output and assist gas for stable, efficient production cutting.
- Smooth Piercing
- Flash Piercing
- Deslag Pierce
- Circle Center

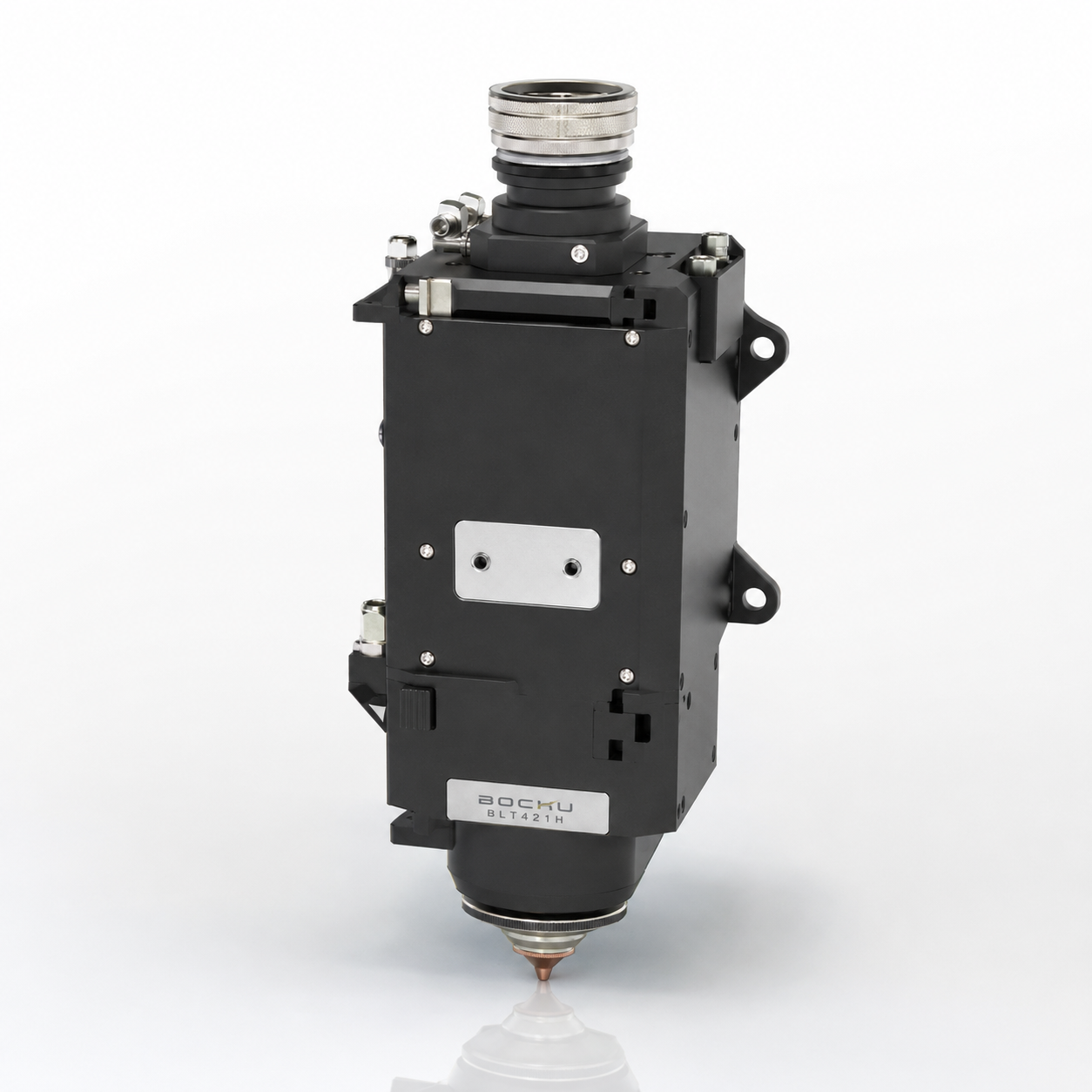

BLT4 intelligent cutting head
BOCHU BLT421H
The catalogue-specified BLT421H belongs to BOCHU’s BLT4 intelligent head family, designed for stable cutting and convenient process monitoring.
- Fast focusing
- Collision protection
- Extensive water cooling
- Protective-window monitoring

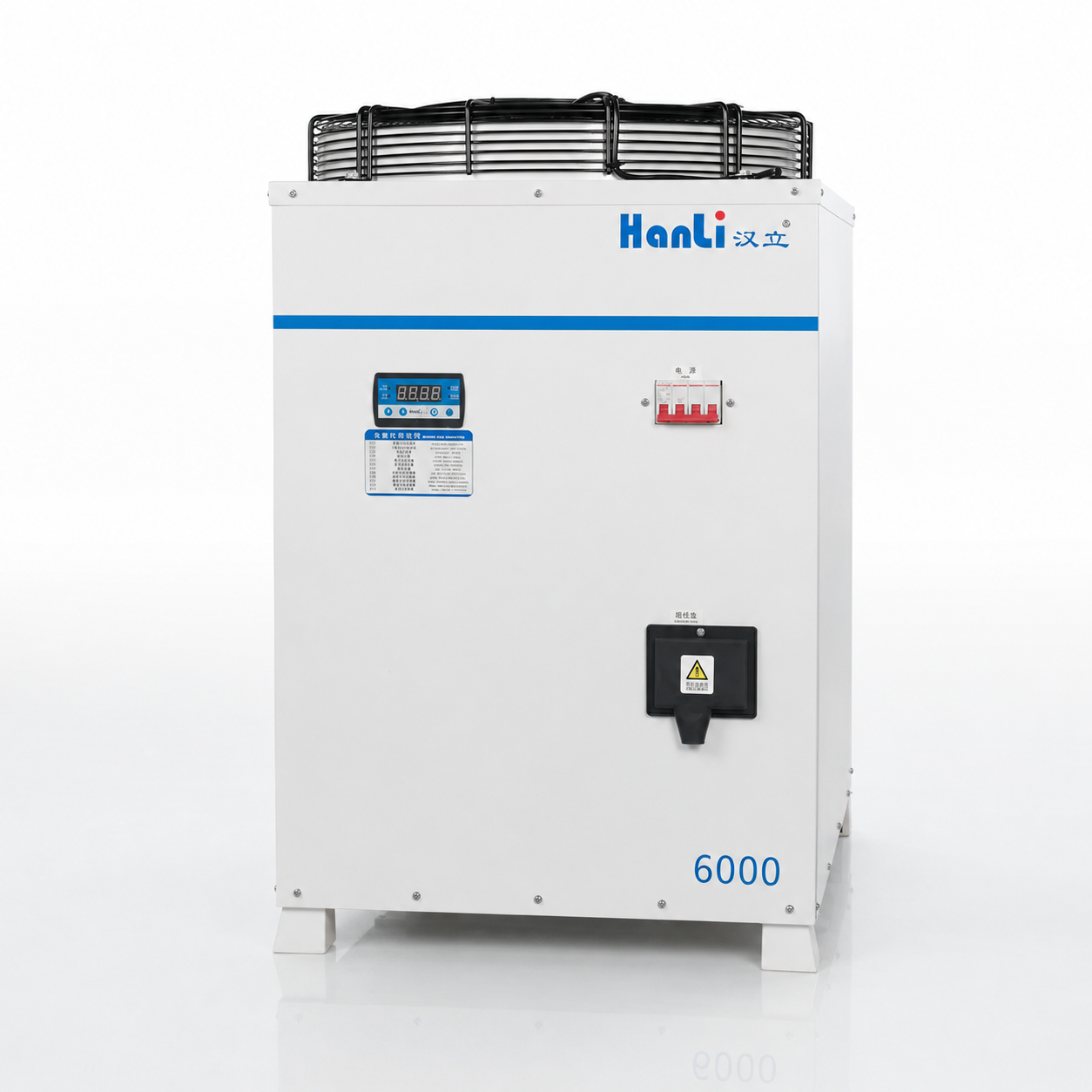

6 kW dual-temperature chiller
Hanli HL-6000
Dedicated cooling circuits regulate the laser source and optical path, with digital control and continuous high-performance water circulation.
- ±1°C control accuracy
- 38 L water tank
- Dual temperature control
- 380 V three-phase
Machine configuration
Production hardware,
specified clearly.
Every major system is selected for reliable operation, accurate motion and convenient maintenance.
Laser sourceRaycus RFL-C6000M-HP, 6000 W
Cutting headBOCHU BLT421H (BLT4 family)
Control systemCypCutE / FSCUT6000 Advanced
X-axis driveTaiwan Delta 0.85 kW servo
Y-axis drive2 × Taiwan Delta 1.3 kW servo
Z-axis driveTaiwan Delta 0.4 kW servo
Electrical componentsSchneider Electric
Proportional valvesJapan SMC, oxygen and nitrogen
Industrial computerIncluded
GantryAviation-grade aluminum
Performance data
Measured for confidence.
Laser interferometer calibration is used to test and refine machine precision before delivery.
Cutting accuracy±0.02 mm
Positioning accuracy±0.03 mm
Repeat positioning±0.02 mm
Z-axis travel300 mm
Laser wavelength1080 ± 5 nm
Power consumption< 23 kW
Electrical supply380 V / 50 Hz, three-phase, five-wire
Machine size11,755 × 2,970 × 2,400 mm
Gross weight6,200 kg
6 kW cutting reference
Plan jobs with
practical cutting data.
Reference cutting speeds for carbon steel, stainless steel, aluminum and brass across the supported thickness range.
Material
Carbon steel
Listed maximum 1-3/16" (30 mm)
Gauge / inchMetricCutting speed
19 ga · 0.039 in1 mm141–171 ft/min43–52 m/min
14 ga · 0.079 in2 mm75–95 ft/min23–29 m/min
11 ga · 0.118 in3 mm20–33 ft/min6–10 m/min
8 ga · 0.157 in4 mm11–12 ft/min3.5–3.7 m/min
6 ga · 0.197 in5 mm10–11 ft/min3.2–3.3 m/min
3 ga · 0.236 in6 mm8.5–9.2 ft/min2.6–2.8 m/min
0 ga · 0.315 in8 mm7.9–8.2 ft/min2.4–2.5 m/min
3/8 in10 mm7.2–7.5 ft/min2.2–2.3 m/min
1/2 in12 mm6.2–6.6 ft/min1.9–2.0 m/min
9/16 in14 mm3.9–4.9 ft/min1.2–1.5 m/min
5/8 in16 mm2.6–3.0 ft/min0.8–0.9 m/min
11/16 in18 mm2.3–2.6 ft/min0.7–0.8 m/min
3/4 in20 mm2.0–2.1 ft/min0.60–0.65 m/min
1 in25 mm1.6–1.8 ft/min0.50–0.55 m/min
1-3/16 in30 mm0.7–1.0 ft/min0.20–0.30 m/min
Material
Stainless steel
Listed maximum 3/4" (20 mm)
Gauge / inchMetricCutting speed
19 ga · 0.039 in1 mm148–154 ft/min45–47 m/min
14 ga · 0.079 in2 mm115–121 ft/min35–37 m/min
11 ga · 0.118 in3 mm59–66 ft/min18–20 m/min
8 ga · 0.157 in4 mm46–49 ft/min14–15 m/min
6 ga · 0.197 in5 mm26–33 ft/min8–10 m/min
3 ga · 0.236 in6 mm20–21 ft/min6.0–6.5 m/min
0 ga · 0.315 in8 mm13–14 ft/min4.0–4.2 m/min
3/8 in10 mm5.9–6.6 ft/min1.8–2.0 m/min
1/2 in12 mm3.6–4.3 ft/min1.1–1.3 m/min
9/16 in14 mm3.0–3.3 ft/min0.9–1.0 m/min
5/8 in16 mm2.6–2.8 ft/min0.80–0.85 m/min
11/16 in18 mm2.0–2.3 ft/min0.6–0.7 m/min
3/4 in20 mm1.6–2.0 ft/min0.5–0.6 m/min
Material
Aluminum
Listed maximum 5/8" (16 mm)
Gauge / inchMetricCutting speed
18 ga · 0.039 in1 mm164–171 ft/min50–52 m/min
12 ga · 0.079 in2 mm92–95 ft/min28–29 m/min
9 ga · 0.118 in3 mm49–56 ft/min15–17 m/min
6 ga · 0.157 in4 mm30–33 ft/min9–10 m/min
4 ga · 0.197 in5 mm20–21 ft/min6.0–6.5 m/min
2 ga · 0.236 in6 mm15–16 ft/min4.5–5.0 m/min
0 ga · 0.315 in8 mm9.2–9.5 ft/min2.8–2.9 m/min
3/8 in10 mm6.2–6.6 ft/min1.9–2.0 m/min
1/2 in12 mm3.6–3.9 ft/min1.1–1.2 m/min
5/8 in16 mm1.6–2.0 ft/min0.5–0.6 m/min
Material
Brass
Listed maximum 5/8" (16 mm)
Gauge / inchMetricCutting speed
18 ga · 0.039 in1 mm144–180 ft/min44–55 m/min
12 ga · 0.079 in2 mm82–115 ft/min25–35 m/min
9 ga · 0.118 in3 mm56–66 ft/min17–20 m/min
6 ga · 0.157 in4 mm33–39 ft/min10–12 m/min
4 ga · 0.197 in5 mm23–26 ft/min7–8 m/min
2 ga · 0.236 in6 mm16–20 ft/min5–6 m/min
0 ga · 0.315 in8 mm6.6–9.8 ft/min2–3 m/min
3/8 in10 mm5.2–6.6 ft/min1.6–2.0 m/min
1/2 in12 mm4.3–5.6 ft/min1.3–1.7 m/min
5/8 in16 mm2.0 ft/min0.6 m/min
Gauge numbers differ between ferrous and non-ferrous sheet. Millimetres are the source catalogue values and should control final process setup. Speeds are reference values; actual results depend on material grade, assist gas, pressure, nozzle and required edge quality.

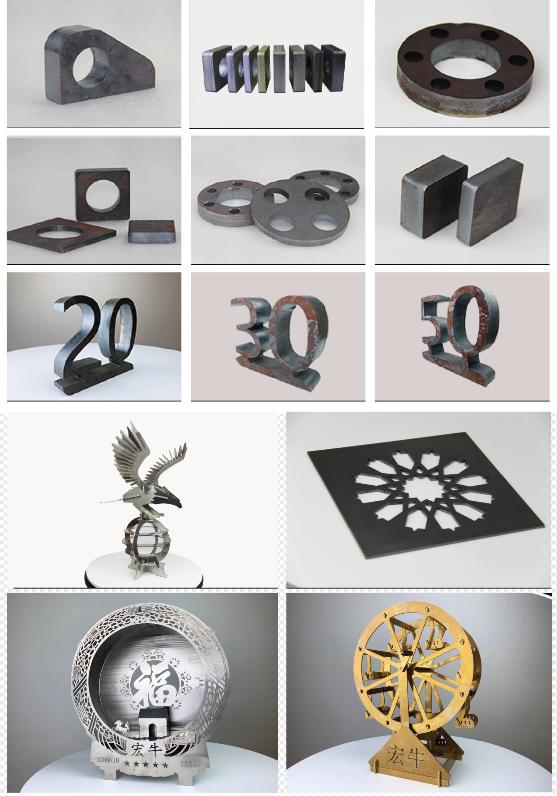

Cutting effects display
From flat sheet
to finished detail.
See the clean profiles, detailed geometry and decorative metalwork achievable with a properly configured 6 kW fiber laser.

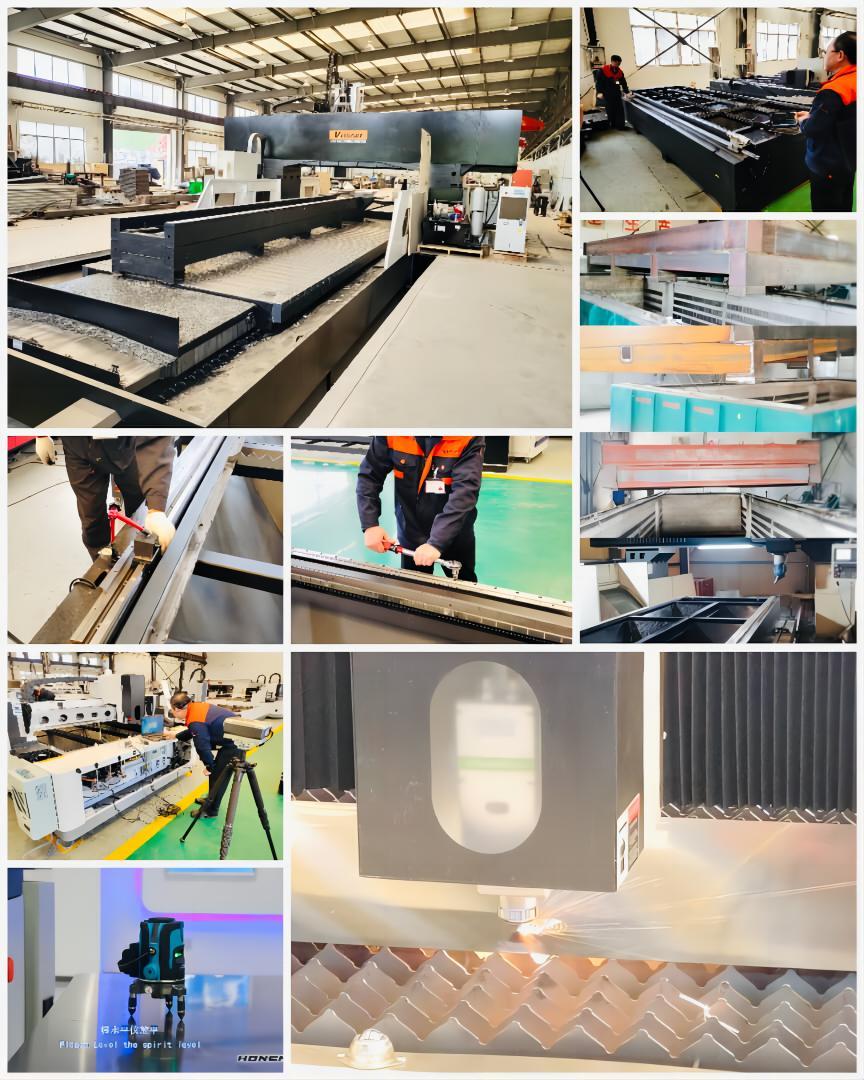

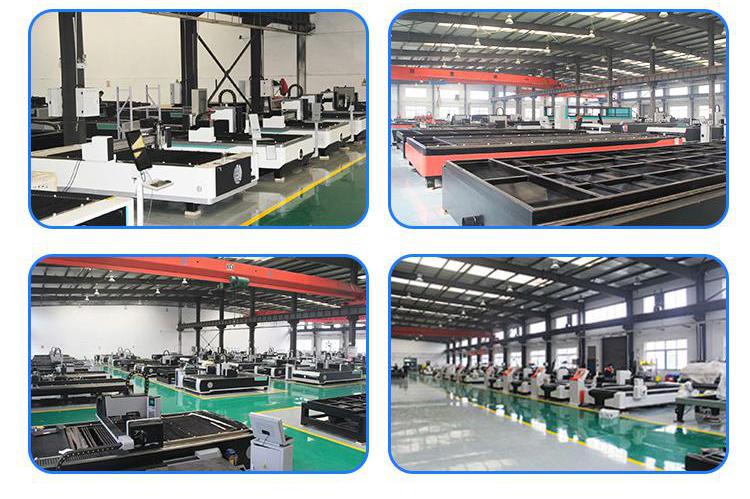

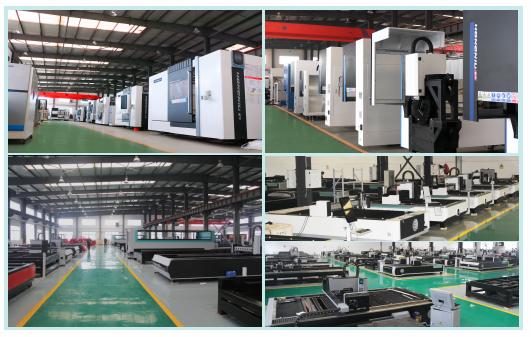

Manufacturing & quality
Built inside an industrial
production environment.
See it in action
Watch the HT-4015H work.
Explore the machine, working area and cutting process in the official product video.
Support beyond delivery
Built to lead.
Backed for the long run.
Two-year warranty
Machine warranty with replacement parts supplied during the warranty period; freight conditions apply.
Responsive support
Technical questions are answered by the dedicated support team, with online training available.
Lifetime assistance
Lifetime software upgrades and technical consultation help keep your system productive.
About Hightech Industry
Industrial machinery,
built for global production.
Canada-based sales & serviceLocal support. Global manufacturing strength.
Hightech Industry Group supplies intelligent industrial machinery, application support and spare-parts service to manufacturers worldwide. Through Hightech Industry Canada, customers across Canada receive faster communication, local guidance and dependable support for machine selection, configuration, installation planning and after-sales service.
About Hightech Industry ↗Hightech Industry Canada
Ready to increase
your cutting capacity?
Tell us about your materials, thickness range and production goals. A Canadian line specialist can help confirm the controller, source, chiller and delivery configuration.
